Inspection: Thread Gauges

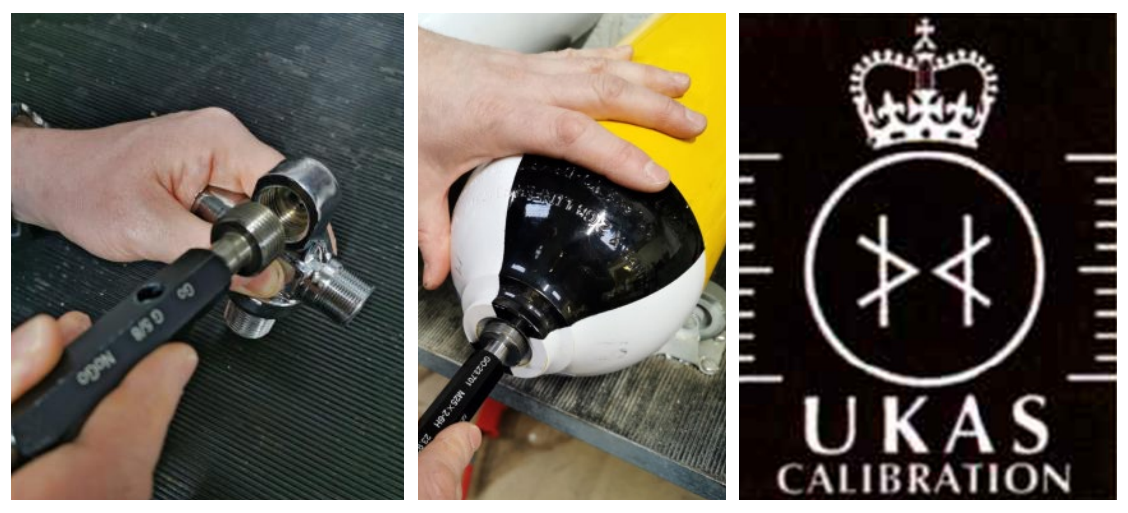

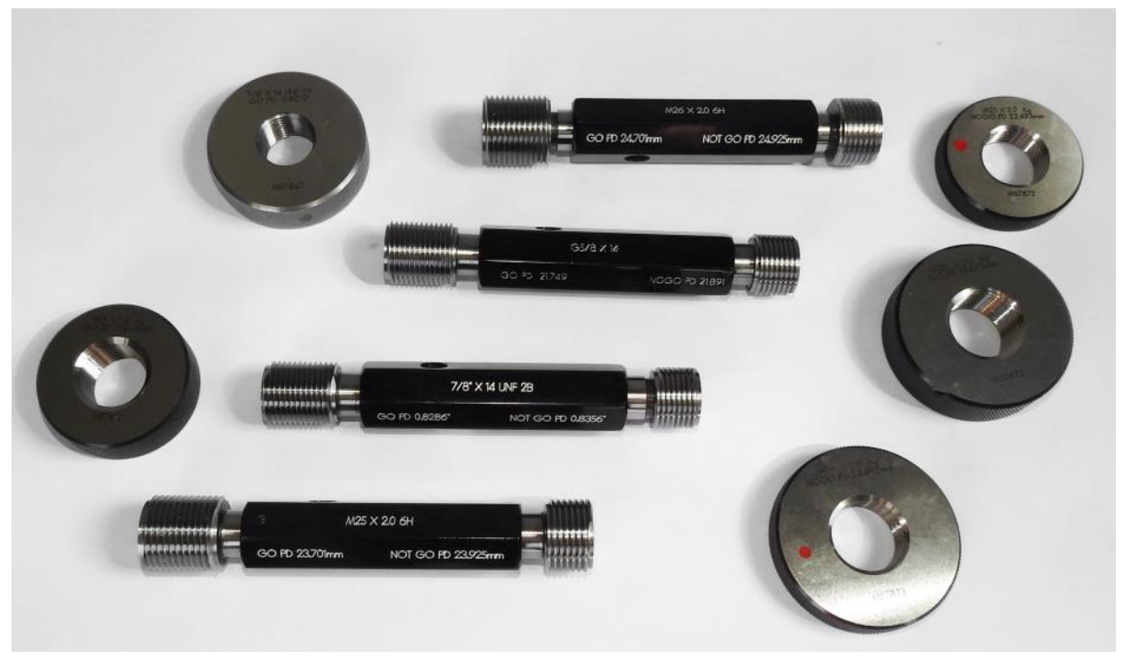

Good quality thread gauges are a very important part of any cylinder test station’s equipment. We supply a wide range of high quality thread gauges for the main cylinder threads all with UKAS calibration certification available.


Part Number | Description |
IE01-C-0001 | Thread Gauge, Plug, G5/8 x 14, GO/NOGO Double Ended |
IE01-C-0002 | Thread Gauge, Plug, M18 x 1.5 6H, GO/NOGO Double Ended |
IE01-C-0003 | Thread Gauge, Ring, M18 x 1.5 6g, GO |
IE01-C-0004 | Thread Gauge, Ring, M18 x 1.5 6g, NOGO |
IE01-C-0005 | Thread Gauge, Plug, M25 x 2.0 6H, GO/NOGO Double Ended |
IE01-C-0006 | Thread Gauge, Ring, M25 x 2.0 6g, GO |
IE01-C-0007 | Thread Gauge, Ring, M25 x 2.0 6g, NOGO |
IE01-C-0008 | Thread Gauge, Plug, G3/4 x 14, GO/NOGO Double Ended |
IE01-C-0009 | Thread Gauge, Ring, G3/4 x 14, GO |
IE01-C-0010 | Thread Gauge, Ring, G3/4 x 14, NOGO |
IE01-C-0011 | Thread Gauge, Plug, 3/4 x 14 NPSM, GO/NOGO Double Ended |
IE01-C-0012 | Thread Gauge, Ring, 3/4 x 14 NPSM, GO |
IE01-C-0013 | Thread Gauge, Ring, 3/4 x 14 NPSM, NOGO |
IE01-C-0014 | Thread Gauge, Plug, 0.715 Plain, Small End |
IE01-C-0015 | Thread Gauge, Plug, 0.715 Plain, Large End |
IE01-C-0016 | Thread Gauge, Ring, 0.715 Plain, Small End |
IE01-C-0017 | Thread Gauge, Plug, 0.715 Plain, Large End |
IE01-C-0018 | Thread Gauge, Plug, M26 x 2.0-6H, GO/NOGO Double Ended |
IE01-C-0019 | Thread Gauge, Ring, M26x2.0-6g, GO |
IE01-C-0020 | Thread Gauge, Ring, M26x2.0-6g, NOGO |
IE01-C-0021 | Thread Gauge, Plug, 17E, Plain, Full Length |
IE01-C-0022 | Thread Gauge, Ring, G5/8 x 14, GO |
IE01-C-0023 | Thread Gauge, Ring, 3/4 x 14 NPSM, NOGO |
IE01-C-0024 | Thread Gauge, Ring, G5/8 x 14, NOGO |
IE01-C-0025 | Thread Gauge, Plug, 25E, Plain, Full Length |
IE01-C-0026 | Thread Gauge, Plug, 25E, Plain, Full Length |
IE01-C-0028 | Thread Gauge, 3/4 – 16 UNF 2B, GO/NO GO Plug |
IE01-C-0029 | Thread Gauge, 3/4 – 16 UNF 2A GO, Ring |
IE01-C-0030 | Thread Gauge, 3/4 – 16 UNF 2A NOGO, Ring |
IE01-C-0031 | Thread Gauge, W28.8, Full Length Threaded Plug |
IE01-C-0032 | Thread Gauge, W28.8, Full Length Threaded Ring |
IE01-C-0033 | Thread Gauge, 1″NGT, L1 Taper Screw Ring |
IE01-C-0034 | Thread Gauge, 1″NGT, L8 Taper Screw Ring |
IE01-C-0035 | Thread Gauge, 7/8-14 UNF-2B, Plug, GO/NOGO, Double Ended |
IE01-C-0036 | Thread Gauge, 7/8-14 UNF-2A, Ring, GO |
IE01-C-0037 | Thread Gauge, 7/8-14 UNF-2B, Ring, NOGO |
IE01-C-0038 | Thread Gauge, 5/8-18 UNF 2A, Ring NOGO |
For UKAS Calibration please include UKAS in the requested part no,
e.g. IE01-C-0001-UKAS
We can offer most thread types, any required that are not listed above please contact us with your requirements.
